Mercedes Benz Actros Wooden toy truck plans 0140150725

Mercedes Benz Actros Wooden toy truck plans and patterns download

This is a digital product in PDF file format, can be downloaded and printed, 1:1 scale cutting pattern for each part is available, step by step building instructions with high resolution images. It’s all quick and easy to make, build it using common tools and easy materials to find.

📝 PDF Full Size Plan Set
🖨️ Ready to Print PDF 25 Sheet A4

Dimensions : Wide 150mm x High 190mm x Long 295mm

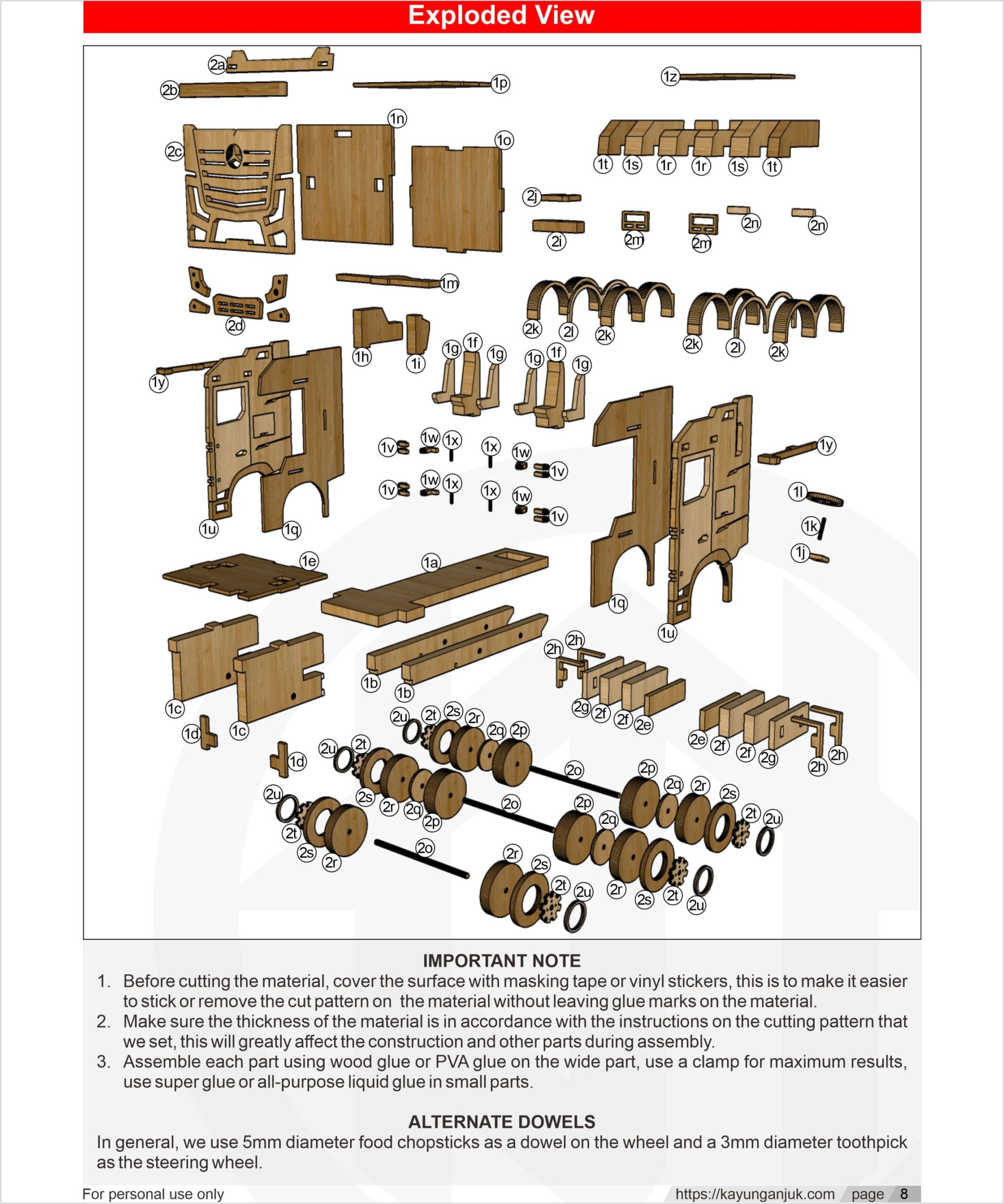

IMPORTANT NOTE

1. Before cutting the material, cover the surface with masking tape or vinyl stickers, this is to make it easier to stick or remove the cut pattern on  the material without leaving glue marks on the material.
2. Make sure the thickness of the material is in accordance with the instructions on the cutting pattern that we set, this will greatly affect the construction and other parts during assembly.

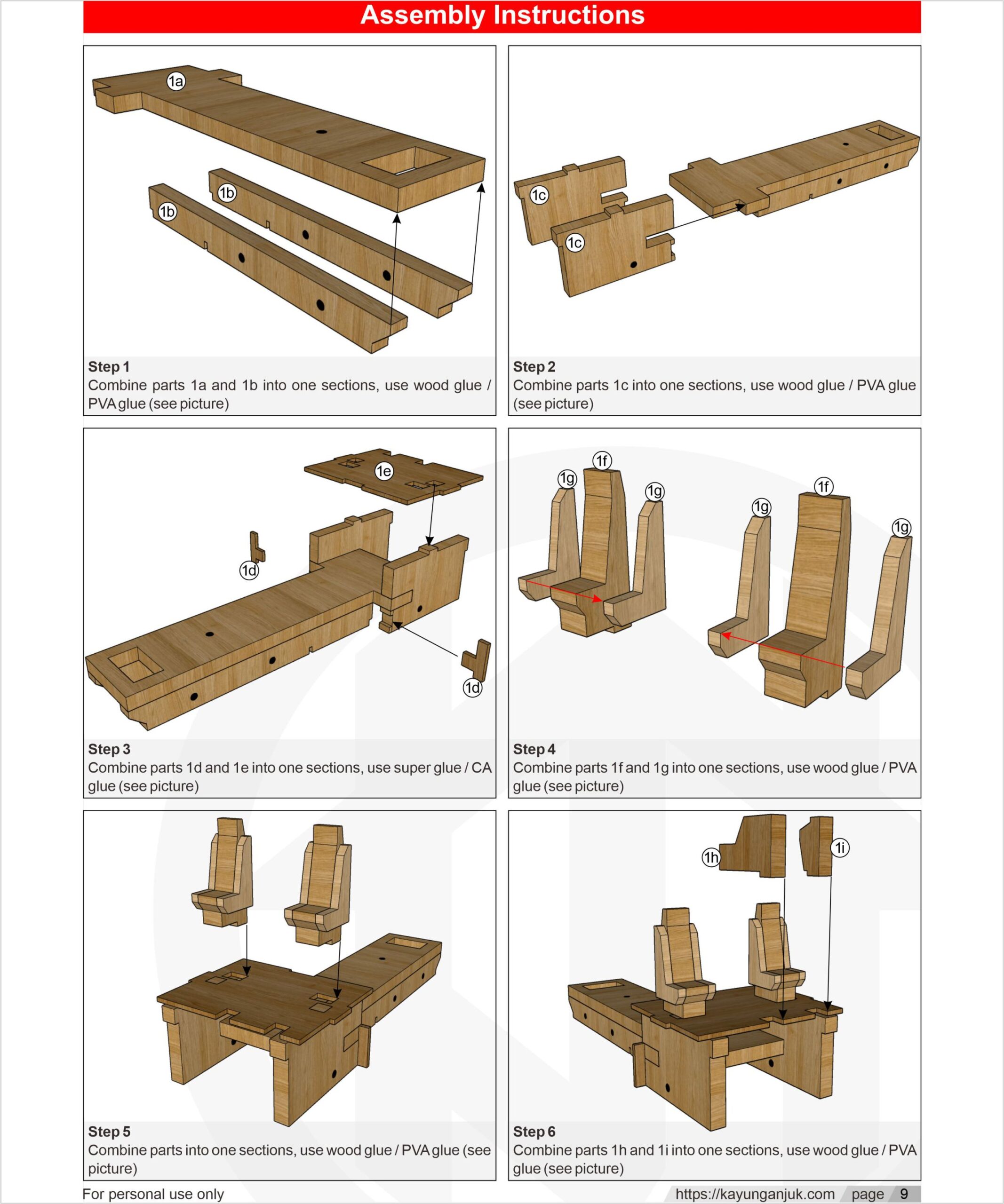

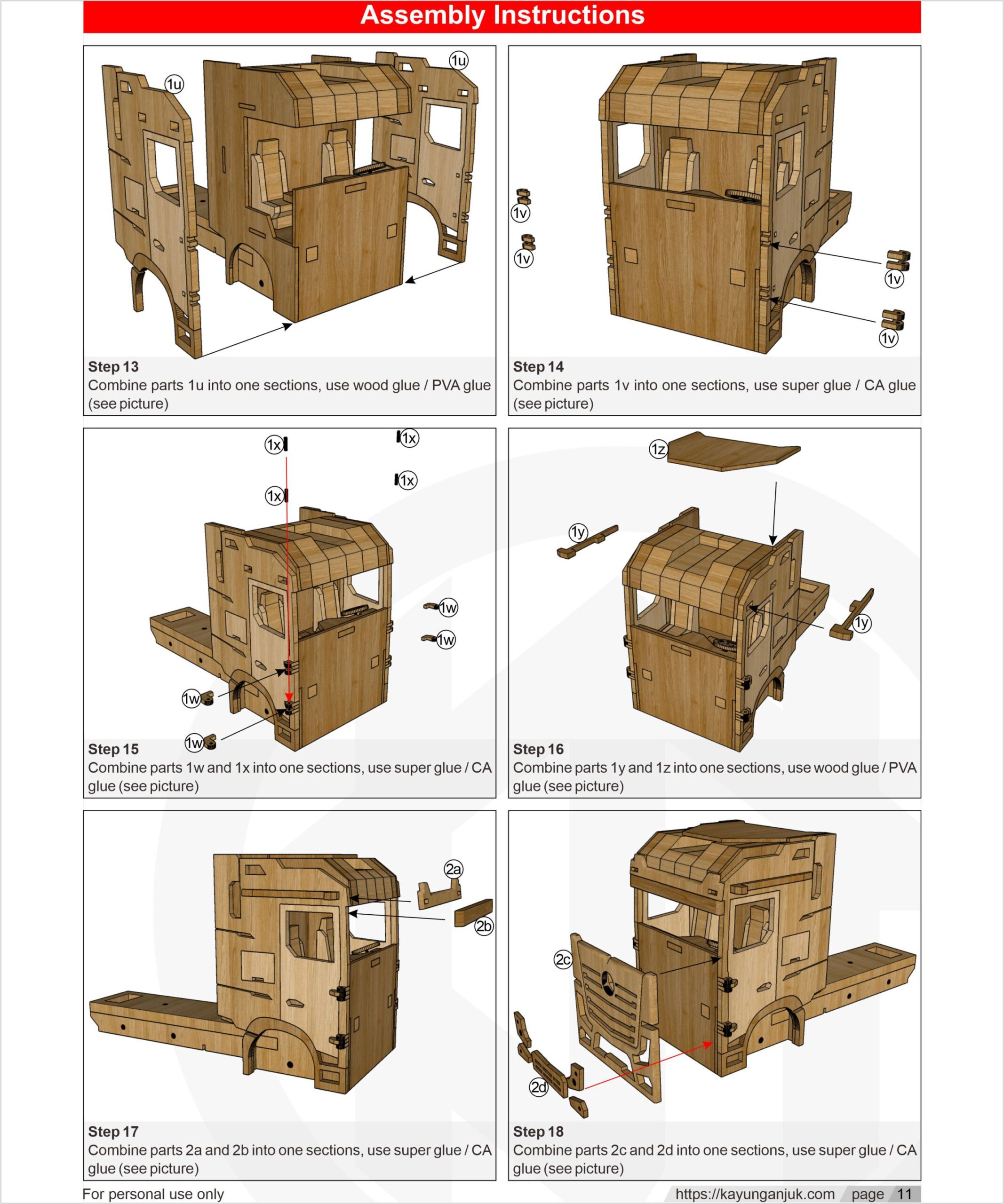

3. Assemble each part using wood glue or PVA glue on the wide part, use a clamp for maximum results, use super glue or all-purpose liquid glue in small parts.

IMPORTANT NOTE

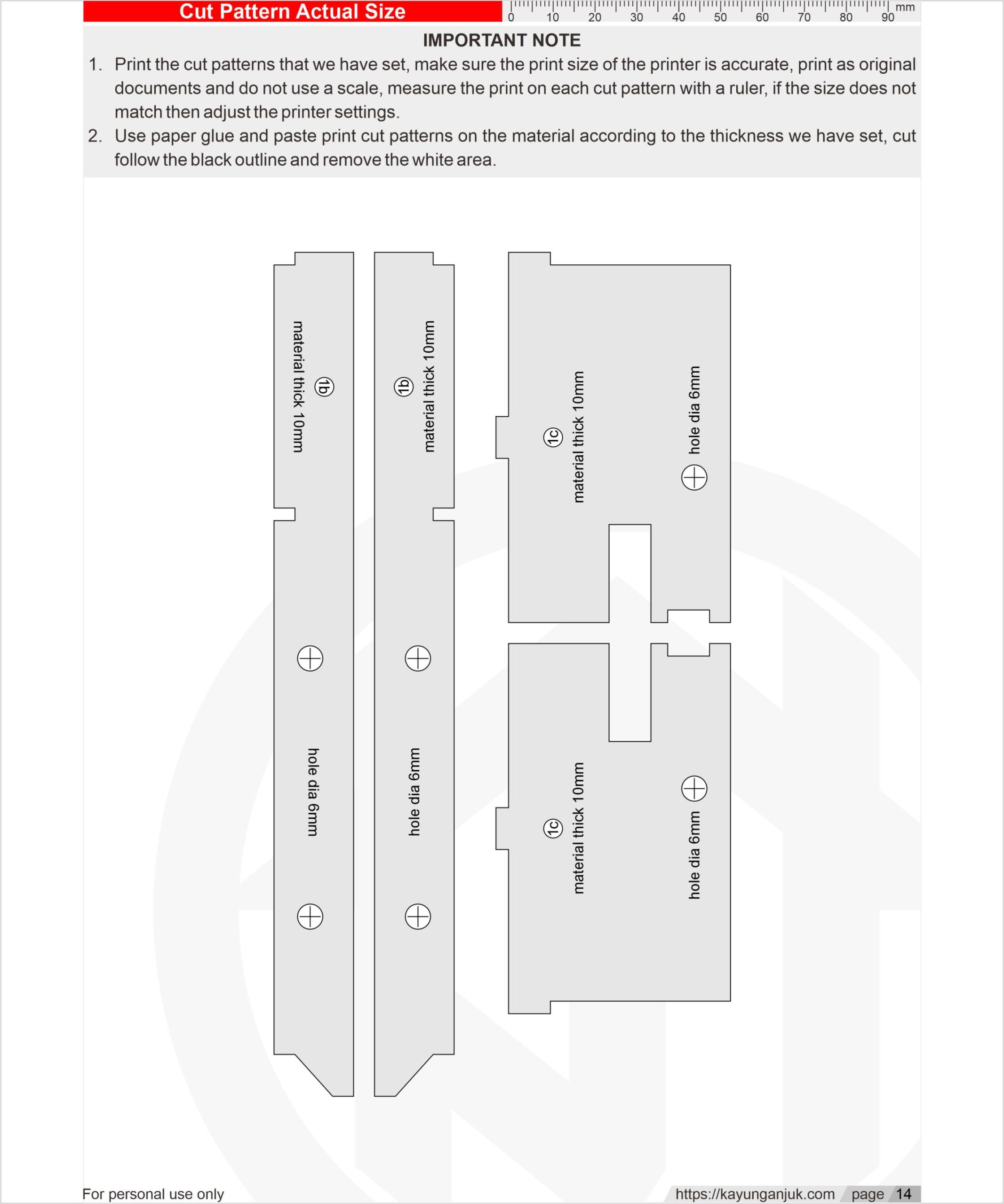

Print the cut patterns that we have set, make sure the print size of the printer is accurate, print as original documents and do not use a scale, measure the print on each cut pattern with a ruler, if the size does not match then adjust the printer settings.

Use paper glue and paste print cut patterns on the material according to the thickness we have set, cut follow the black outline and remove the white area.

ALTERNATE DOWELS

In general, we use 5mm diameter food chopsticks as a dowel on the wheel and a 3mm diameter toothpick as the steering wheel.
